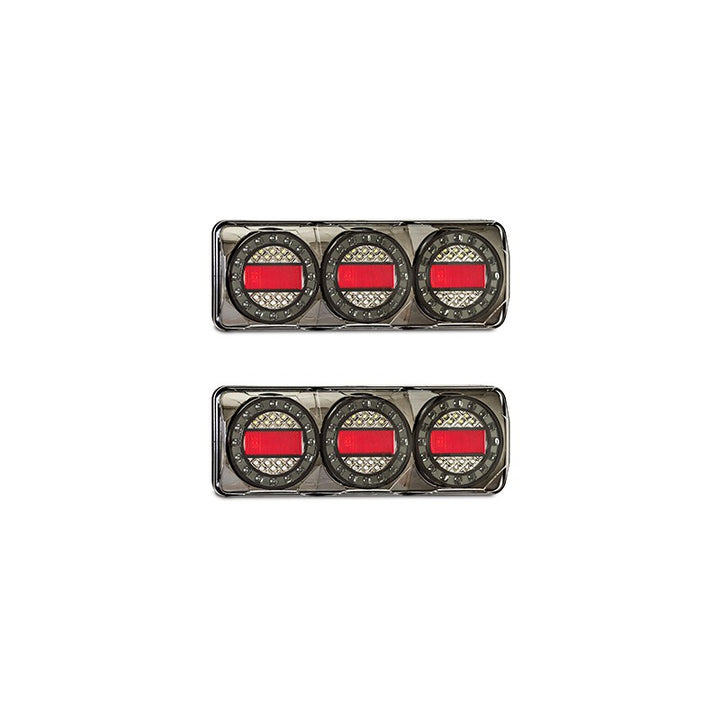

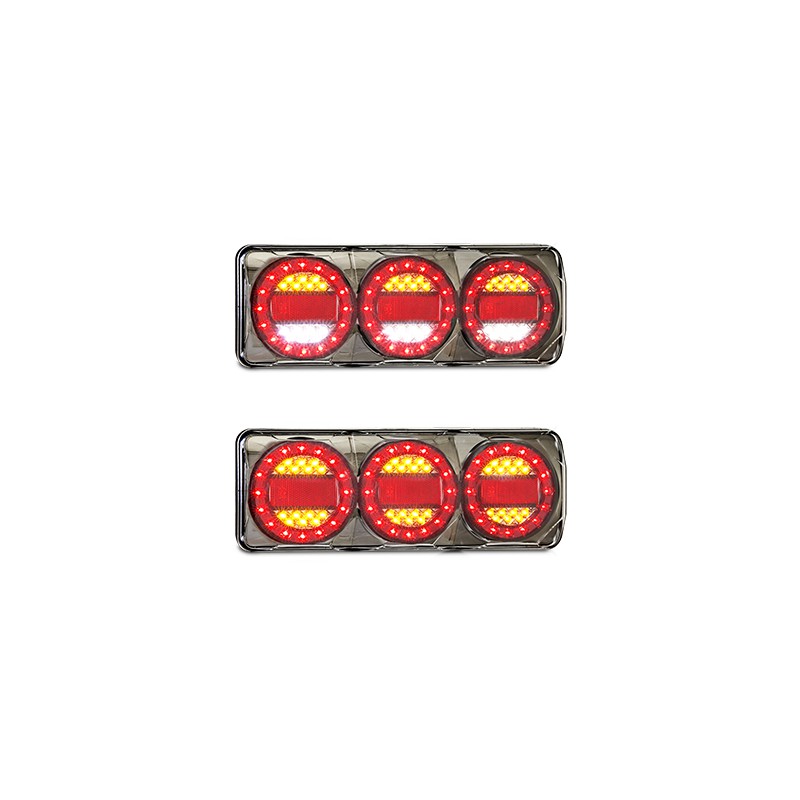

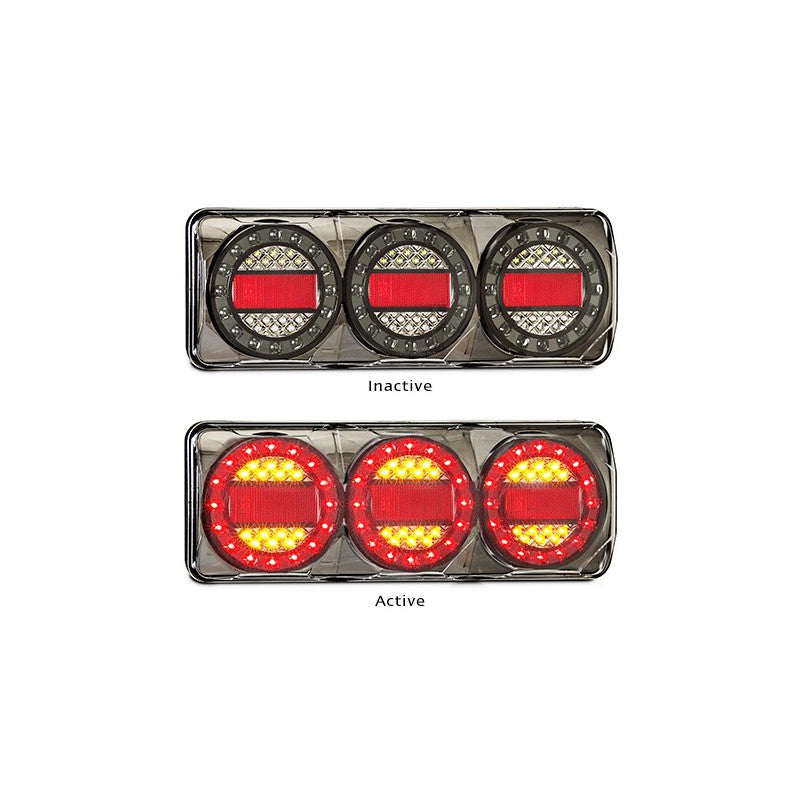

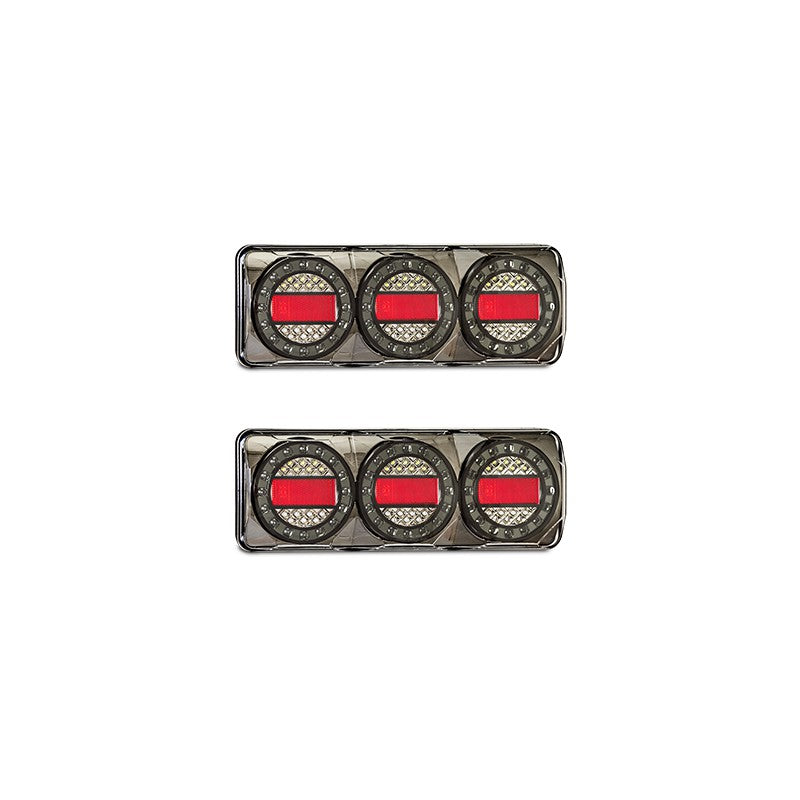

MAXILAMP 3 SERIES LED COMBINATION TAIL LIGHTS (PAIR) STOP / TAIL / INDICATOR / REVERSE
Regular price
$550.00
Sale price$199.00
Save $351.00
MAXILAMP 3
Features / Specifications
|
Fitting InstructionsHorizontally mount onto flat surface using bolts or 3M tape depending on which product choice, run wire through hole in fixing surface. Please refer to ADR 13/00 for mounting instructions. |
| DOWNLOAD DATA SHEET |
Technical Drawings
|
| Function | Stop/Tail/Indicator/Reverse/Reflector | |||
 | ||||
| Part No. | ||||
| MaxilampC3XRW | Bolt Mount, Single Blister | |||
| MaxilampC3XRWB | Bolt Mount, Single Box | |||
| MaxiLampC3XRW3M | 3M Tape, Single Box | |||
| . | ||||
| LED Qty | 90 | |||
| Cable | 40cm | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.54A | 0.08A | 0.77A | 0.67A |
| @28V | 0.27A | 0.04A | 0.35A | 0.34A |
| Approvals | Function | Category | CRN | |
| ADR | Stop/Tail | 49/00 | 40963 | |
| ADR | Indicator | 6/00 2a | 40962 | |
| ADR | Reverse | 1/00 | 40961 | |
| ECE | Reflector | 1a-E9-02.1472 | ||
| CTA | 6/00, 47/00, 49/00, 1/00 | CTA-040963 | ||
